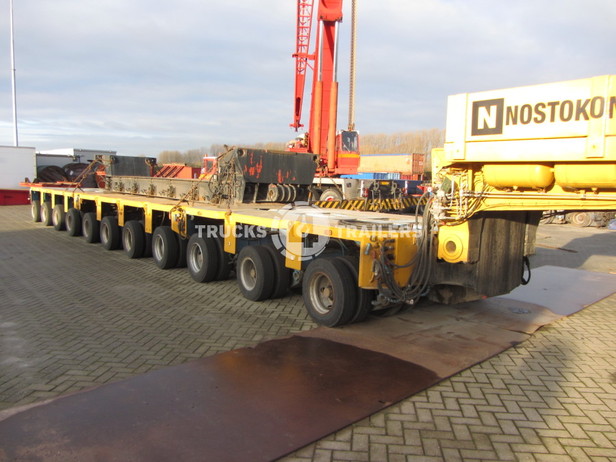

Goldhofer THP
To see more details, videos and prices
Technical specifications
Upper structure
Carrier structure
Other
Item nr.
277
Brand
Goldhofer
Model
THP
Capacity
240 metric ton
Year
1984
Remark
12x HPT Hydraulic Platform Trailer
Remarks
12x HPT Hydraulic Platform Trailer
Tyres
215/70R17,5
Number of axles
11
Location
Finland
Lenght
9.00 meter
Width
2.75 meter
Height
0.50 meter
Tarra
25 metric ton
GVW
240 metric ton
Suspension
hydraulic
Registation country
Finland
Remarks
11 x THP
Remark 1
Gooseneck 30 ton
Remark 2
Spine floor 6 m (90 ton capacity)
Remark 3
23 t/axles
Remark 5
THP L, length / width 4500x 2750 mm
Height 865 mm
Loading height 1165 + / - 300 mm
hydraulic axle compensation
hydro-mechanical power steering wheel
55 degree steering angle in both directions wheeled vehicle combinations
Weight ca.9.300 kg
Swing axles BPW
drum brakes
8 tires per axle line 215/75 R 17.5
maximum axle load 23,000 kg
Combination gooseneck
hydr. Height adjustable, suitable for 4 - axle tractor
Imposed load 30,000 kg technically
By turning radius 2800 mm
Total weight 5000 kg
Loading area 3700 x 2500 mm with aluminum side plates bevelled corners
3.5 inch kingpin
Saddle height 1320 mm
