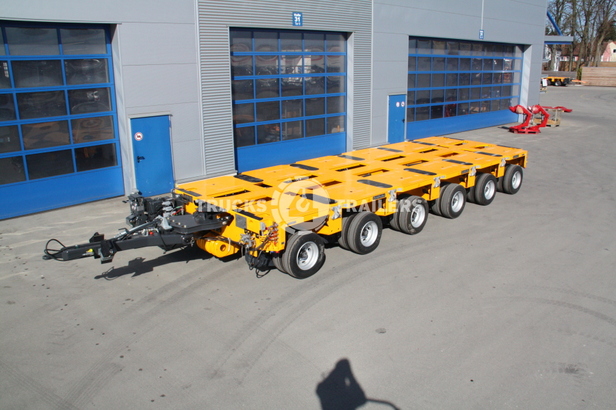

Goldhofer THP-SL
To see more details, videos and prices
Technical specifications
Upper structure
Carrier structure
Other
Item nr.
305
Brand
Goldhofer
Model
THP-SL
Capacity
225 metric ton
Remark
NEW
Remarks
NEW
Tyres
215/75R17,5
Number of axles
5
Location
Germany
ABS
Lenght
7.00 meter
Width
3.00 meter
Height
0.87 meter
Tarra
17 metric ton
GVW
225 metric ton
Suspension
hydraulic
Registation country
Germany
Remark 5
2
- longitudinal- or transversely combination of modular trailers
- middleframe with integrated air- and hydraulic oil tanks
- front and rear: optimized bolt-coupling-lashes for length combination
- two twin arranged tires with swing axle wheelsets with a total of 8 wheels
each axle-line
- axles with ball bearing race ring mounted on rear end
- hydraulic axle compensation +/- 300 mm, hydro-pneumatic suspension with gas
accumulators and hose-rupture safety-valve on each axle
- in the running gear integrated, hydro-mechanical 2-circuit-allwheel-force
steering with a max. steering angle of the axles of about +/- 55°,
- 2-conductor-allwheel-air brake and spring-loaded parking brake
- hydraulic pin joint for THP/SL coupling
- ABS /AGS
Speed 0,5 km/h: max. technical axle load 45.000 kg/ Dead weight (ohne
