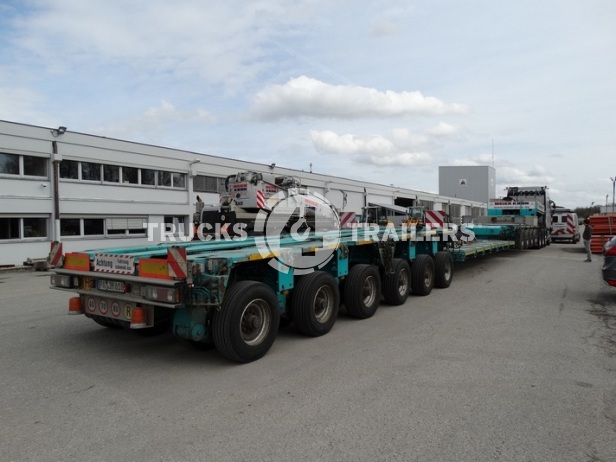

Goldhofer THP-ET
To see more details, videos and prices
Technical specifications
Upper structure
Carrier structure
Other
Item nr.
349
Brand
Goldhofer
Model
THP-ET
Capacity
300 metric ton
Year
2009
Remark
12 axles + 100t floor
Remarks
12 axles + 100t floor
Tyres
285/70R19,5
Number of axles
12
Location
Germany
ABS
Lenght
25.00 meter
Width
5.00 meter
Height
4.00 meter
Tarra
50 metric ton
GVW
300 metric ton
Suspension
hydraulic
Registation country
Germany
Remark 1
THP-ET 23t /axle, 2,75 m wide
Remark 2
excluding 120t Hydraulic vesselbed 25m
Remark 3
100t Baggerbed of 11m (2013)
Remark 5
THP-ET, length / width 4500x 2750 mm Height 960 mm Loading height 115 + / - 300 mm hydraulic axle compensation hydro-mechanical power steering wheel 55 degree steering angle in both directions wheeled vehicle combinations Weight ca.9.300 kg Swing axles BPW drum brakes 4 tires per axle line 285/75 R 19.5 maximum axle load 23,000 kg Combination gooseneck hydr. Height adjustable, suitable for 4 - axle tractor Imposed load 30,000 kg technically By turning radius 2800 mm Total weight 5000 kg Loading area 3700 x 2500 mm with aluminum side plates bevelled corners 3.5 inch kingpin Saddle height 1320 mm
Other downloads
Achslinien Baggerbett (2).pdf
Hals + 12.pdf
PA-JM 614 2-A-AL.pdf
PA-JM 615 3-A-AL.pdf
PA-JM 616 3-A-AL.pdf
PA-JM 617 4-A-AL.pdf
